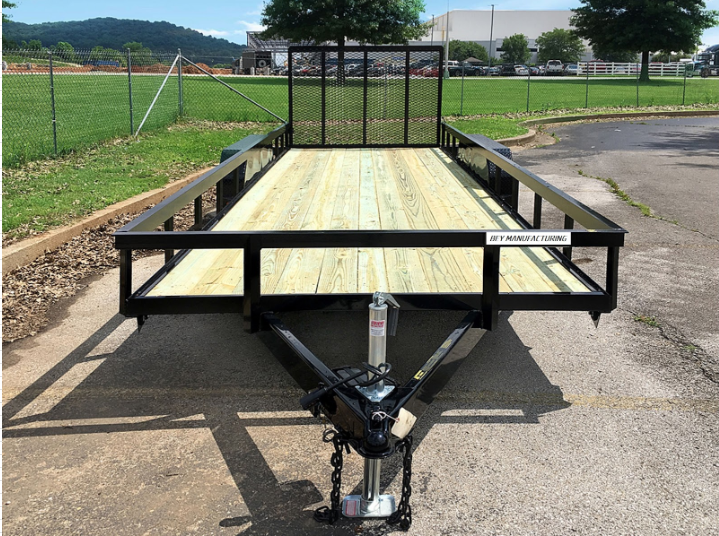

BM3 Trailer
Key Specifications
Explore the specifications of our BM3 trailer, designed to meet your transportation needs.
Product Details
-
Model
BM3
-
Reel Capacity
Capacity for a 61" X 120" Reel, 2.875" shaft (1 Inch)
-
Reel Diameter
Reel Diameter at lowest position, 24" Reel (1 Std)
Additional Features
- Overall Length: 12 Feet
- Width: 100" OD, 62" ID (Approx 1 Std)
- Brakes: Electric, FSA (Fwd Self Adj) On All Axles (1 Std)
- Axles: 8K Oil Bath (1 Std)
- Tires & Wheels: 215/75R 17.5 H, 8 Bolt [17.5 x 6.75] Plate Wheel (2 Each)
- Hitch Type: 3" Adjustable Lunette Eye/Pintle, [C] 50,000 lb Plate Mount (5/8" Bolt) (1 Std)
- Jack: 7K Drop Leg Top Wind (1 Std)
- Plug: 7 Pole RV (1 Std)
- Lights: LED Lights (Peterson), Sealed Wiring Harness (1 Std)
- Trailer Color: Felling Black # CCA945378 (White Felling Decal) (1 Std)
- Standard Elec/Hydraulic Pump with 12 V battery in Lockable Enclosure (1 Std)
- Standard 3/8" Safety Chains, Grade 70 (1 Std)
- GVWR: 9,200 lbs (1 Std)
